Getting Started

Welcome to Schema Gallery! This guide will walk you through everything you need to know to create beautiful, SEO-optimized galleries with validated JSON-LD structured data.

Quick Start Guide

Dashboard Overview

The Schema Gallery dashboard is your central hub for managing all your galleries and accessing key features.

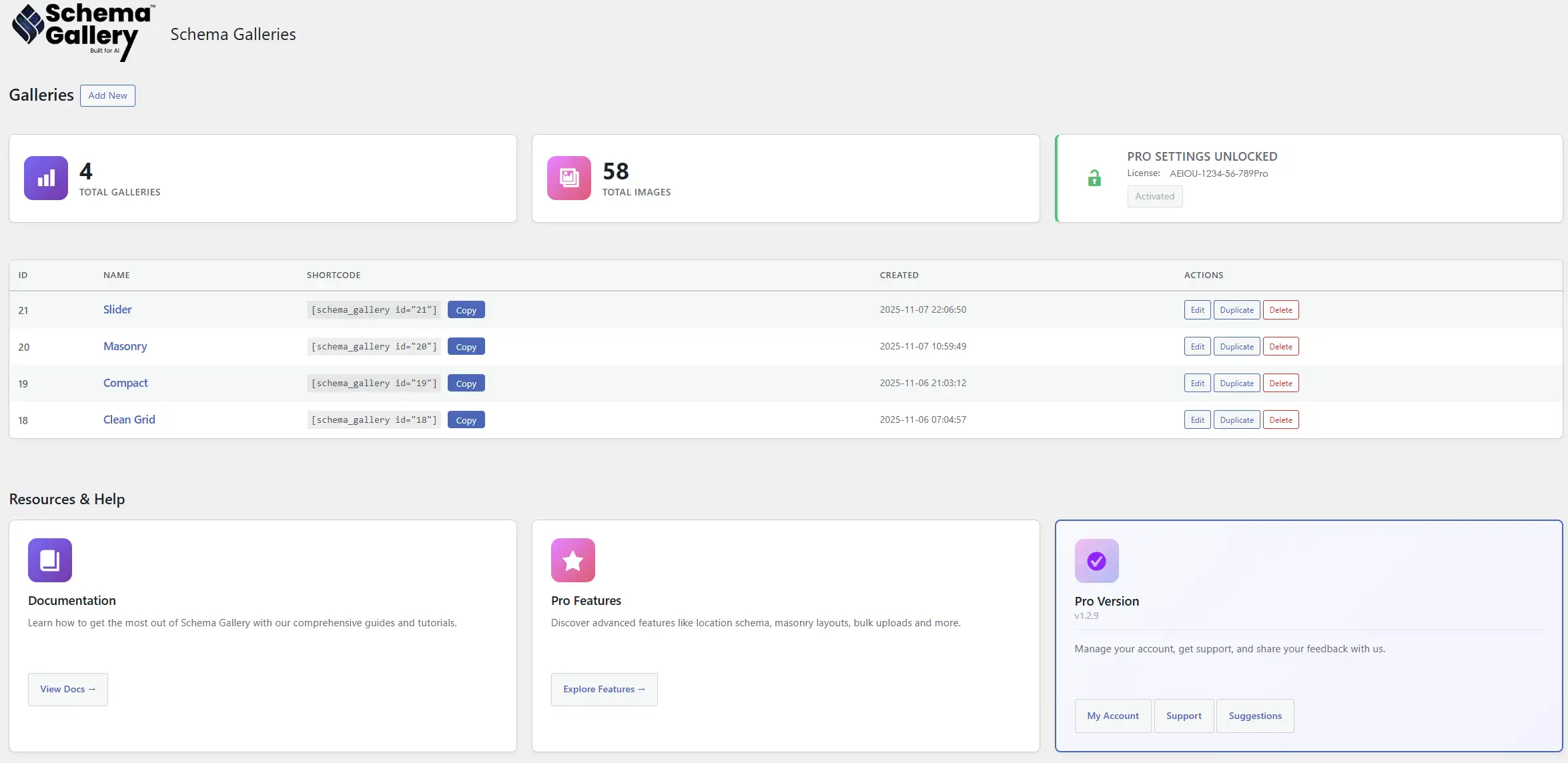

Dashboard

Dashboard Statistics

Gallery Management Table

Your galleries are displayed in a clean table with the following columns:

Resources & Help

At the bottom of your dashboard, you’ll find quick access to:

• Documentation – Comprehensive guides and tutorials
• Pro Features – Discover advanced capabilities
• Pro Version – Manage account, support, and feedback

Creating Your First Gallery

Creating a gallery in Schema Gallery is quick and straightforward. Follow these steps to get your first gallery up and running.

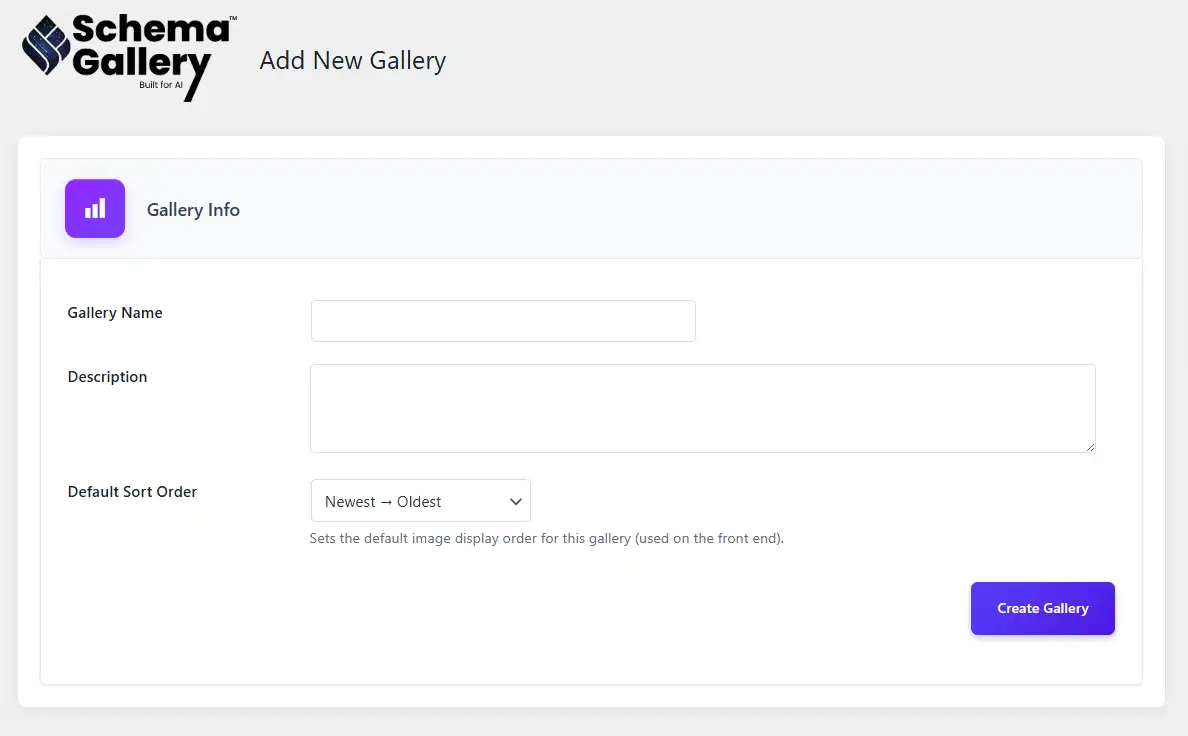

Gallery Creation

Step-by-Step Process

1. Start a New Gallery

From your dashboard, click the “Add New” button. You’ll be taken to the gallery creation screen.

2. Configure Basic Gallery Settings

At the top of the screen, you’ll see three essential fields:

1. Gallery Name – Give your gallery a descriptive name (required). This helps you organize multiple galleries.
2. Description – Add an optional description for internal organization and SEO purposes.
3. Default Sort Order – Choose how images display by default:
   • Newest → Oldest (default)
   • Oldest → Newest
   • Custom Order (Pro feature – requires Enable Custom Sort in Pro Settings)

3. Save Your Gallery Information

Click the “Update Gallery Info” button (located to the right of the Default Sort Order field) to save your changes.

4. Next Steps

After saving your gallery information, you can:

• Add images or YouTube videos
• Configure Pro Settings for advanced layouts and features
• Manage and reorder gallery items
• Copy your shortcode to display the gallery

Adding Images and Videos

Schema Gallery supports both images and YouTube videos, each with comprehensive metadata fields for perfect schema markup.

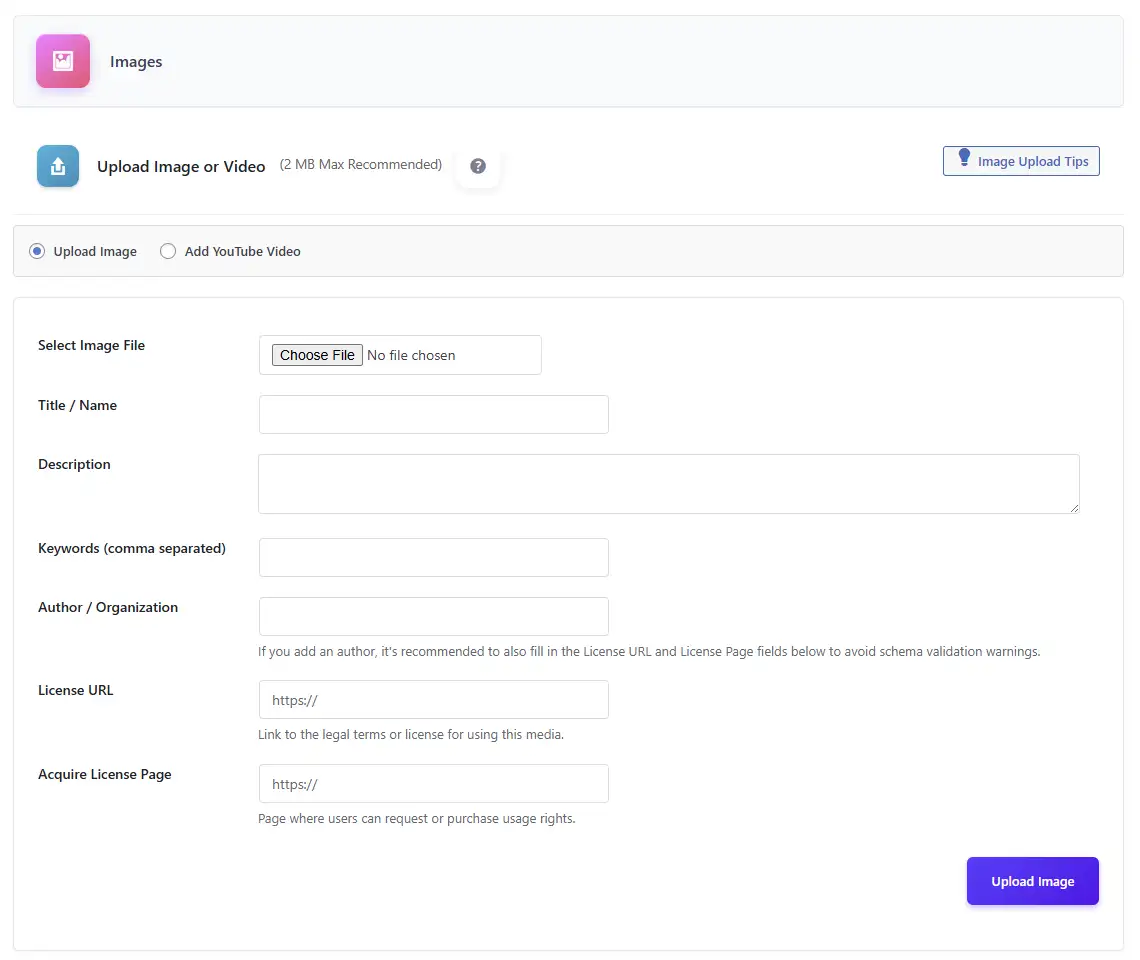

Add Media Interface

Upload Images or Add Videos

The “Upload Image or Video” section provides two options via radio buttons:

• Upload Image – Select and upload an image file from your computer
• Add YouTube Video – Enter a YouTube URL to embed a video

For Images: Required Fields

5. Select Image File – Click “Choose File” to select an image from your computer
6. Title / Name – Enter a descriptive title (becomes the image alt text and appears in schema markup)

For YouTube Videos(Pro Feature)

When “Add YouTube Video” is selected, you’ll enter the YouTube URL instead of choosing a file. All other metadata fields work the same way.

Optional Metadata Fields

These fields enhance your schema markup and improve SEO:

7. Description – Detailed description of the image or video (appears in schema markup and lightbox)
8. Keywords – Comma-separated keywords for organization and searchability
9. Author / Organization – Credit the creator (recommended for schema validation – Google may ignore images without author information)
10. License URL – Link to usage terms or license information
11. Acquire License Page – URL where users can purchase usage rights

Location Information (Pro Feature)

Below the standard metadata fields, you’ll find the Location Information section. Click to expand this section and add geographic data to your images.

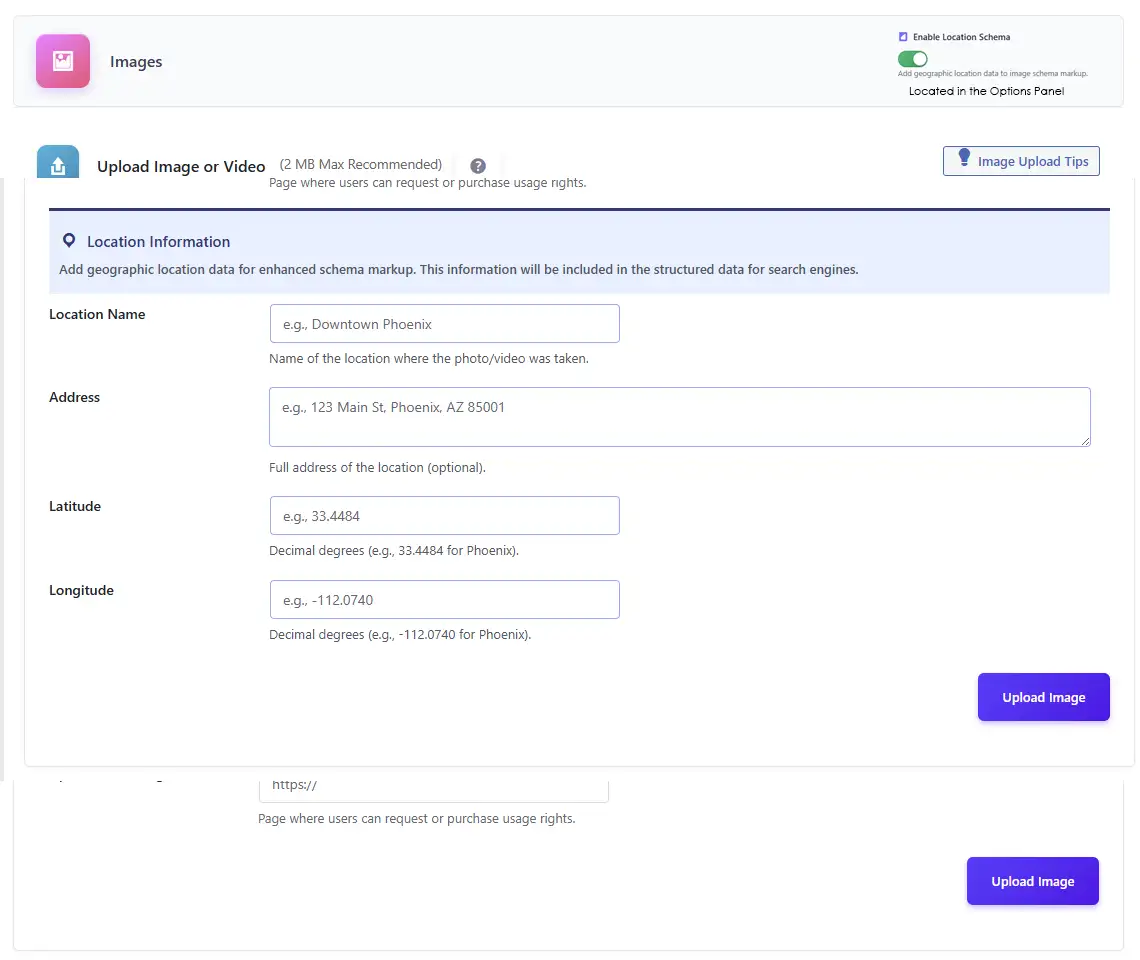

Location Fields

Geographic Fields

Add location data that will be included in your schema markup:

• Location Name – Descriptive name (e.g., “Downtown Phoenix”, “Grand Canyon”)
• Address – Full street address (optional)
• Latitude – Decimal degrees (e.g., 33.4484)
• Longitude – Decimal degrees (e.g., -112.0740)

After entering location data, click the “Add Video” button (or “Upload Image” if adding an image) to save the item with location information.

Saving Your Media

13. Upload Image Button – Click this purple button at the bottom to save your image or video with all metadata

Pro Settings Configuration

Pro Settings unlock advanced features and customization options. These settings apply per-gallery, giving you complete control over each gallery’s appearance and behavior.

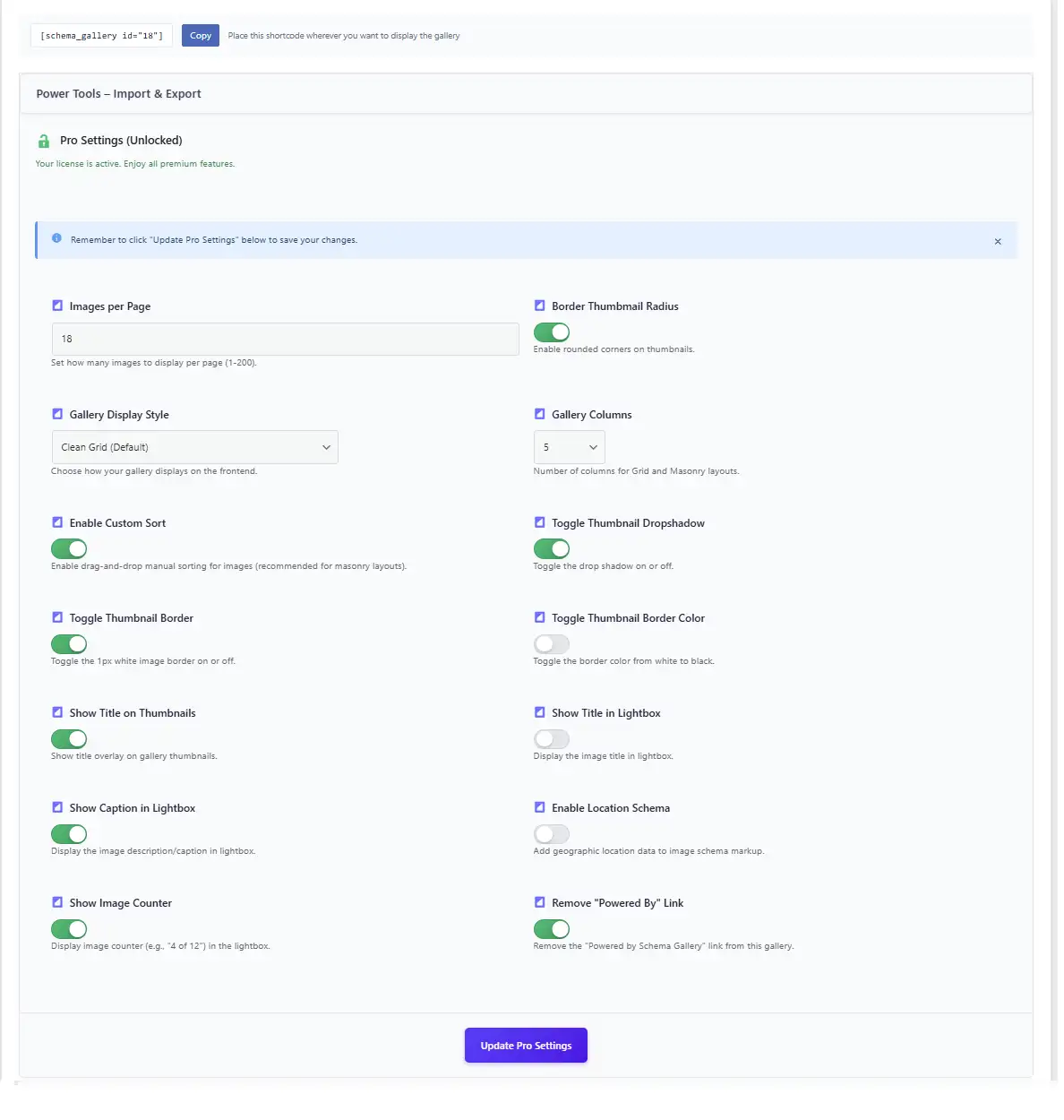

Pro Settings Panel

Activation Status

Display Settings

Control the basic display properties of your gallery:

Visual Customization Toggles

Each toggle switch controls a specific visual aspect. Toggle switches show green when enabled:

Custom Sort Behavior

When Enable Custom Sort is toggled on:

• The Gallery Items section becomes sortable with drag handles (≡) appearing on each item
• You can drag items to reorder them manually
• Auto-Save: Order changes save automatically – no button to click!
• Your custom order overrides the Default Sort Order setting
• Especially useful for Masonry layouts where you want precise control over visual flow

Saving Pro Settings

After making changes to any Pro Settings:

1. A blue reminder notice appears at the top: “Remember to click ‘Update Pro Settings’ below to save your changes.”
2. Click the purple “Update Pro Settings” button at the bottom to save all changes

Managing Gallery Items

The Gallery Items section provides a comprehensive view of all media in your gallery with easy editing and reordering capabilities.

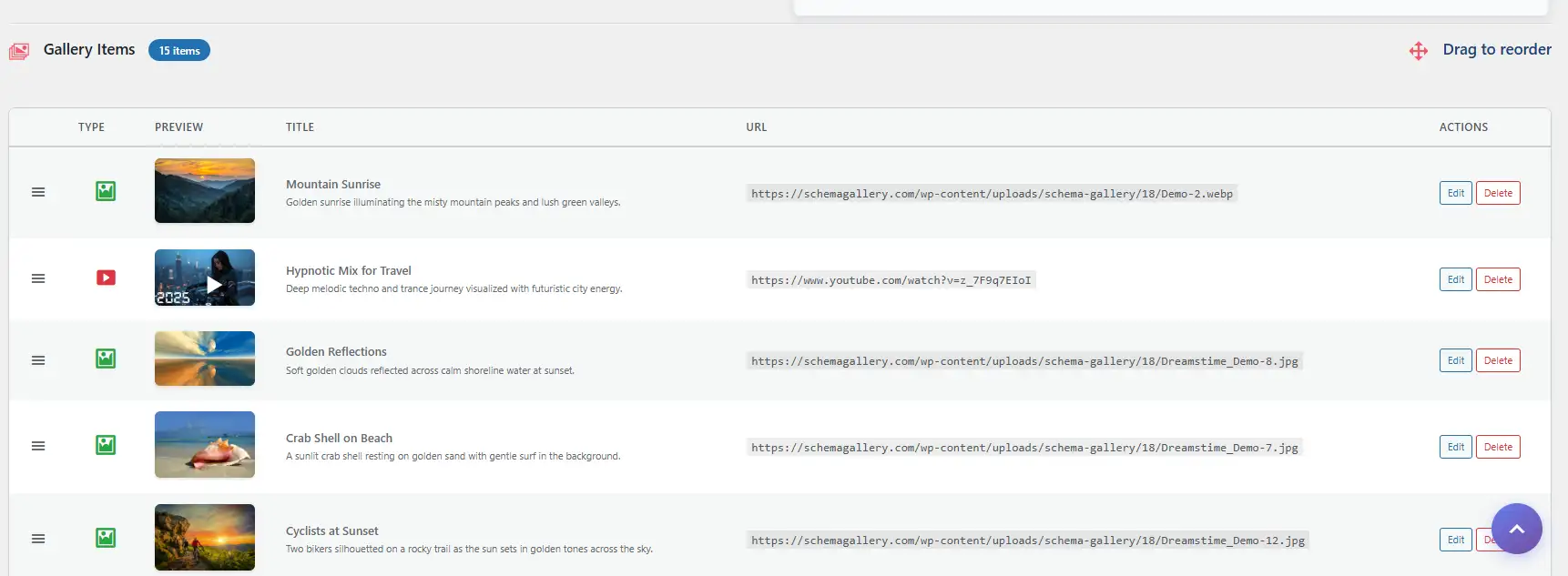

Gallery Items Management

Items Table Overview

Your gallery items are displayed in a table with:

• Drag Handle (≡) – Appears when Custom Sort is enabled for reordering
• TYPE – Icon showing image or video
• PREVIEW – Thumbnail of the media
• TITLE – Name and description
• URL – Full path to the media file or YouTube URL
• ACTIONS – Edit or Delete buttons

Drag-and-Drop Reordering

When Custom Sort is enabled in Pro Settings, drag handles (≡) appear on the left side of each item:

Editing and Deleting Items

Each item has two action buttons:

• Edit – Opens the item’s metadata for editing (same fields as when adding)
• Delete – Permanently removes the item from the gallery

Import & Export Tools

Power tools for bulk editing schema metadata. Perfect for agencies managing large sites or updating metadata across many images at once.

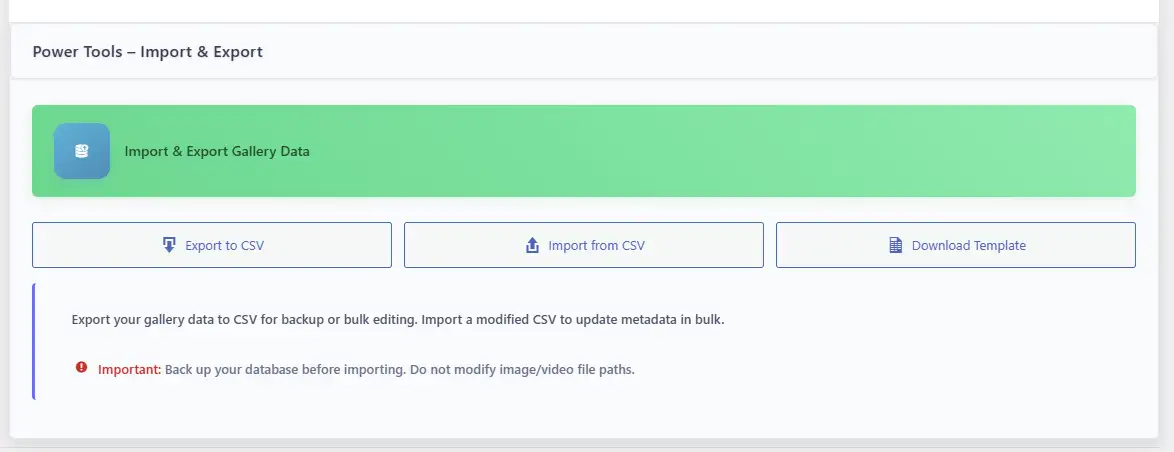

Import & Export Tools

Export to CSV

Use Case: Backup your gallery data or bulk edit metadata in a spreadsheet

1. Click the “Export to CSV” button in the Power Tools section
2. Your browser downloads a CSV file with all gallery metadata
3. Open in Excel, Google Sheets, or any spreadsheet software

Import from CSV

Use Case: Update schema metadata for multiple images at once

1. Export your current gallery data to CSV (creates a backup)
2. Edit the metadata fields in your spreadsheet (titles, descriptions, keywords, location data, etc.)
3. Click “Import from CSV” and select your modified file
4. Gallery metadata updates based on the CSV data

Download Template

Click “Download Template” to get a blank CSV template showing the proper format and all available fields. This is the easiest way to understand the structure before creating your own import file.

Best Practices

• Always export before importing to have a backup
• Test imports on a staging site first
• Keep your CSV files organized with version numbers
• Don’t change existing file paths
• Use the template as a reference for field names and format

Using Shortcodes

Every gallery gets a unique shortcode for easy embedding anywhere on your WordPress site.

Your Gallery Shortcode

On the dashboard, each gallery displays its shortcode:

[schema_gallery id="1"]

The number is your gallery’s unique ID.

Quick Copy

Click the “Copy” button next to any shortcode to instantly copy it to your clipboard.

Where to Use Shortcodes

• WordPress posts and pages (Gutenberg or Classic Editor)
• Text widgets in sidebars or footers
• Page builder elements (Divi, Elementor, Beaver Builder)
• Template files using do_shortcode()

Universal Compatibility

Frequently Asked Questions

Do I need Pro for basic galleries?

No! The free version supports unlimited galleries and images with full schema markup. Pro adds advanced features like location schema, custom layouts, and additional customization options.

What structured data does Schema Gallery provide?

Schema Gallery generates validated JSON-LD markup for:

• ImageObject – For all images
• VideoObject – For YouTube videos
• Place/Location data – Pro feature for geographic information

All markup is validated to pass Google’s Rich Results Test with zero errors.

What is the Import/Export feature for?

The Import/Export tools are designed for bulk editing schema metadata within Schema Gallery. You can export your gallery data to CSV, edit metadata fields like titles, descriptions, keywords, and location data in a spreadsheet, then import the changes back. This is perfect for updating large galleries efficiently.

How does Custom Sort work?

When you enable Custom Sort in Pro Settings, drag handles appear on each gallery item. You can click and drag items to reorder them. The best part: changes save automatically when you drop an item in its new position – no save button needed!

Does this work with my theme?

Yes! Schema Gallery uses universal WordPress shortcodes that work with any properly coded theme and all major page builders including Divi, Elementor, and Beaver Builder.

How does Schema Gallery help with SEO?

Schema Gallery provides validated structured data that helps search engines understand your images and videos. Benefits include:

• Rich results in Google search
• Better image search rankings
• Enhanced discoverability by AI search engines
• Improved click-through rates from search
• Location-based search optimization (Pro feature)

Can I use Schema Gallery on multiple sites?

The free version can be used on unlimited sites. Pro licenses are available for:

• Pro: 1 site ($69/year)
• Freelancers: 5 sites ($129/year)
• Developers: Unlimited sites ($199/year)

What makes Schema Gallery different from other gallery plugins?

Schema Gallery is a WordPress gallery plugin that provides zero-error schema validation verified against Google’s Rich Results Test for both video and images mixed on a page. While other gallery plugins may add some schema markup, Schema Gallery is built specifically for perfect structured data implementation.

Support & Resources

Getting Help

We’re here to help you succeed with Schema Gallery:

• Documentation – This comprehensive guide
• Support Forum – Community support for free users (coming soon)
• Priority Support – Direct email support for Pro users
• Suggestions – Share your feature ideas with us

Upgrade to Pro

Unlock all features including:
